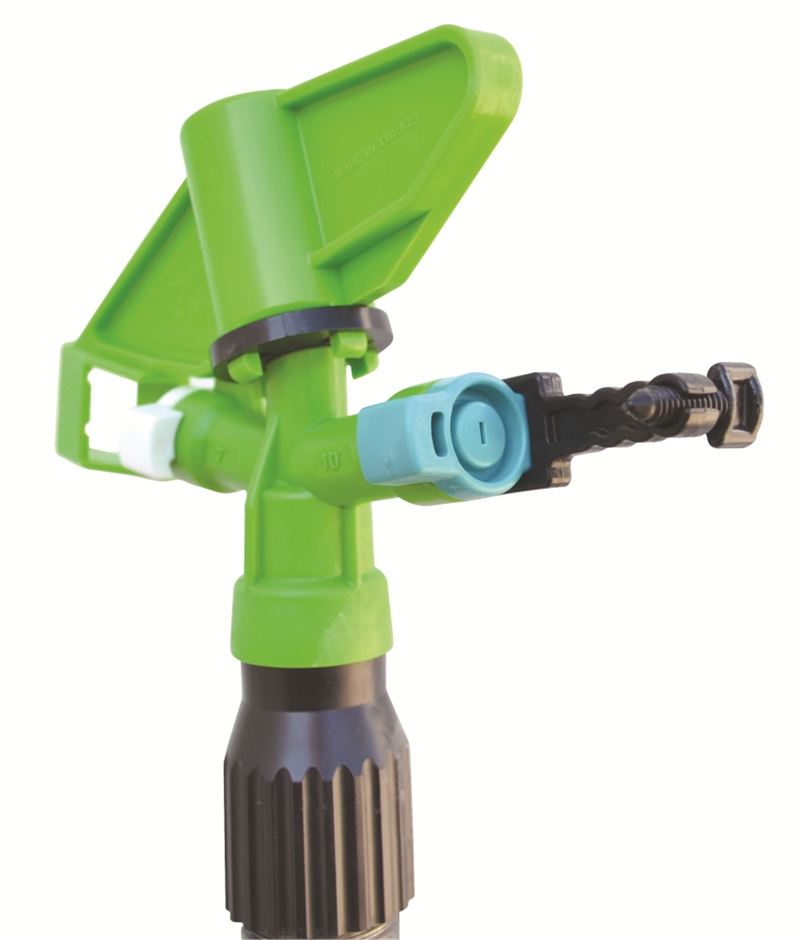

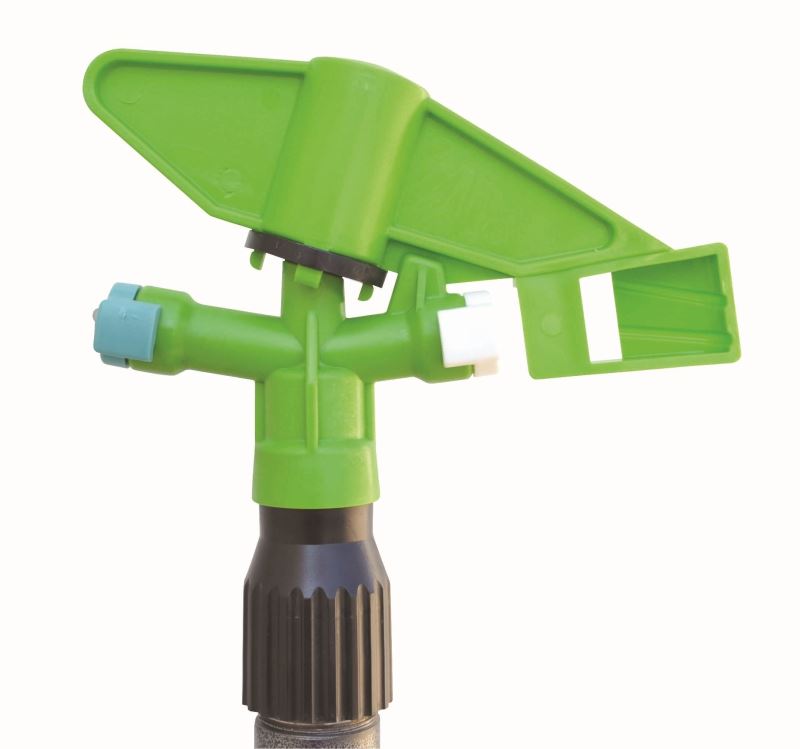

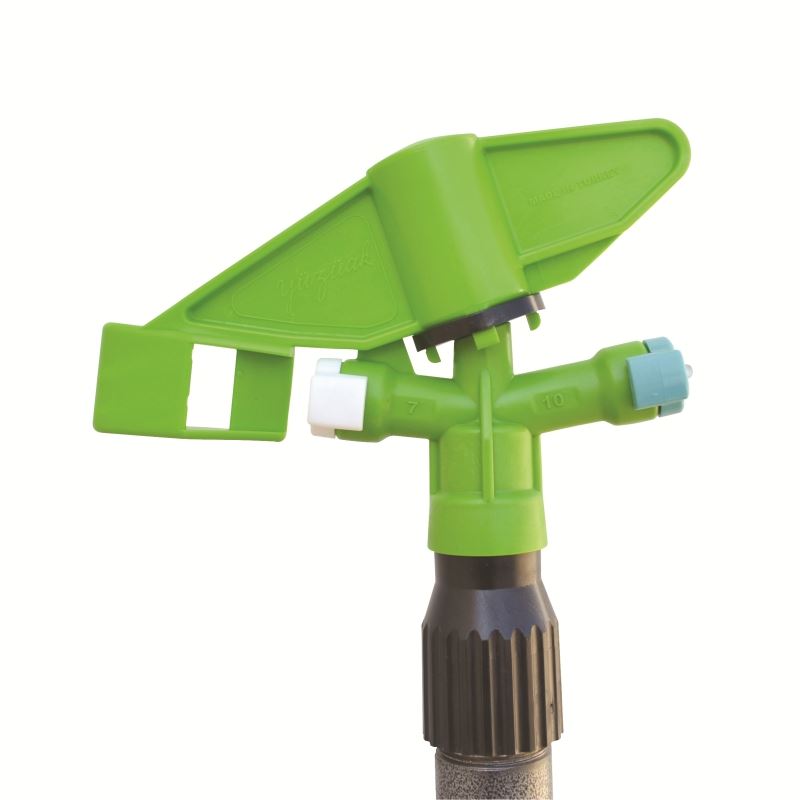

DuCaR Atom 15 LA

Water Input : 1"
Working Pressure : 2 - 4.5 atm
Water Requirement : 2.35 - 4.88 m³
Knockers : End Plug - 4.5 - 5.0 - 5.5 - 6.0 - 6.5 mm
Body Angle : 7° - 10°
Box Dimension : 0.190 cm X 0.175 cm
Weight : 0.25 kg
Shooting Range : 10.8 - 14.4 m
Circle : Full Circle (FC)
SKU: Atom15LA-10
Delivery date: 5 - 10 business days
Manufacturer: DuCaR

The atom 15 LA ACID sprinkler is an impact sprinkler with two low angle water sprays (7°and 10°) and full circle capability. It provides perfect solution with the performance, technology, reliability and the feature of uniform coverage. It can operate with low to mid pressure (1.5 - 4 bar) with high efficiency and operate over a full 360 degrees with two different water spraying angles (7° and 10°) at the same speed.

Its interchangeable nozzles and end plug enable this sprinkler to be used even with low water volume. It can be used with only its 7° or 10° water spray and enables its users to operate with low volume water. It is made of 100% original raw materials, and long lasting with optimum efficiency. It does not get affected by UV lights and mid level chemical water. It is a perfect sprinkler solution for under tree and center pivot applications.



Technical Specifications (DuCaR Atom 15 LA Acid - 10)
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
5,0mm x 4mm ● □ 2 29 10,1 33 39,2 2,35 10,3 319 0,08 7,4
5,0mm x 4mm ● □ 2,5 36 10,8 35 44 2,64 11,6 366 0,09 7,2
5,5mm x 4mm ● □ 2 29 10,6 35 43,8 2,63 11,6 352 0,09 7,5
5,5mm x 4mm ● □ 2,5 36 11,3 37 49 2,94 12,9 401 0,10 7,3
5,0mm x 4mm ● □ 3 43 11,5 38 48 2,88 12,7 417 0,10 6,9
5,0mm x 4mm ● □ 3,5 50 12,2 40 52 3,12 13,7 470 0,12 6,6
5,5mm x 4mm ● □ 3 43 12 39 53,7 3,22 14,2 454 0,11 7,1
5,5mm x 4mm ● □ 3,5 50 12,7 42 58 3,48 15,3 510 0,13 6,8
5,0mm x 4mm ● □ 4,5 64 13 43 58,8 3,53 15,5 527 0,13 6,7
5,5mm x 4mm ● □ 4,5 64 13,5 44 65,7 3,94 17,3 569 0,14 6,9
6,0mm x 4mm ● □ 2 29 10,8 35 48,8 2,93 12,9 366 0,09 8.0
6,0mm x 4mm ● □ 2,5 36 11,5 38 54,7 3,28 14,4 417 0,10 7,9
6,5mm x 4mm ● □ 2 29 11,1 36 54,2 3,25 14,3 386 0,10 8,4
6,5mm x 4mm ● □ 2,5 36 11,9 39 60,7 3,64 16 443 0,11 8,2
6,0mm x 4mm ● □ 3 43 12,2 40 59,8 3,59 15,8 470 0,12 7,6
6,0mm x 4mm ● □ 3,5 50 13 43 64,7 3,88 17,1 527 0,13 7,4
6,5mm x 4mm ● □ 3 43 12,6 41 66,5 3,99 17,6 499 0,12 8,0
6,5mm x 4mm ● □ 3,5 50 13,2 43 71,8 4,31 19 551 0,14 7,8
6,0mm x 4mm ● □ 4,5 64 14 46 73,2 4,39 19,3 619 0,15 7,1
6,5mm x 4mm ● □ 4,5 64 14,4 47 81,3 4,88 21,5 651 0,16 7,5

The atom 15 LA ACID sprinkler is an impact sprinkler with two low angle water sprays (7°and 10°) and full circle capability. It provides perfect solution with the performance, technology, reliability and the feature of uniform coverage. It can operate with low to mid pressure (1.5 - 4 bar) with high efficiency and operate over a full 360 degrees with two different water spraying angles (7° and 10°) at the same speed.

Its interchangeable nozzles and end plug enable this sprinkler to be used even with low water volume. It can be used with only its 7° or 10° water spray and enables its users to operate with low volume water. It is made of 100% original raw materials, and long lasting with optimum efficiency. It does not get affected by UV lights and mid level chemical water. It is a perfect sprinkler solution for under tree and center pivot applications.



Technical Specifications (DuCaR Atom 15 LA Acid - 10)
Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mmShapeatmpsimfeetl/minm3/hG.P.Mm2acremm/h
5,0mm x 4mm ● □ 2 29 10,1 33 39,2 2,35 10,3 319 0,08 7,4
5,0mm x 4mm ● □ 2,5 36 10,8 35 44 2,64 11,6 366 0,09 7,2
5,5mm x 4mm ● □ 2 29 10,6 35 43,8 2,63 11,6 352 0,09 7,5
5,5mm x 4mm ● □ 2,5 36 11,3 37 49 2,94 12,9 401 0,10 7,3
5,0mm x 4mm ● □ 3 43 11,5 38 48 2,88 12,7 417 0,10 6,9
5,0mm x 4mm ● □ 3,5 50 12,2 40 52 3,12 13,7 470 0,12 6,6
5,5mm x 4mm ● □ 3 43 12 39 53,7 3,22 14,2 454 0,11 7,1
5,5mm x 4mm ● □ 3,5 50 12,7 42 58 3,48 15,3 510 0,13 6,8
5,0mm x 4mm ● □ 4,5 64 13 43 58,8 3,53 15,5 527 0,13 6,7
5,5mm x 4mm ● □ 4,5 64 13,5 44 65,7 3,94 17,3 569 0,14 6,9
6,0mm x 4mm ● □ 2 29 10,8 35 48,8 2,93 12,9 366 0,09 8.0
6,0mm x 4mm ● □ 2,5 36 11,5 38 54,7 3,28 14,4 417 0,10 7,9
6,5mm x 4mm ● □ 2 29 11,1 36 54,2 3,25 14,3 386 0,10 8,4
6,5mm x 4mm ● □ 2,5 36 11,9 39 60,7 3,64 16 443 0,11 8,2
6,0mm x 4mm ● □ 3 43 12,2 40 59,8 3,59 15,8 470 0,12 7,6
6,0mm x 4mm ● □ 3,5 50 13 43 64,7 3,88 17,1 527 0,13 7,4
6,5mm x 4mm ● □ 3 43 12,6 41 66,5 3,99 17,6 499 0,12 8,0
6,5mm x 4mm ● □ 3,5 50 13,2 43 71,8 4,31 19 551 0,14 7,8
6,0mm x 4mm ● □ 4,5 64 14 46 73,2 4,39 19,3 619 0,15 7,1
6,5mm x 4mm ● □ 4,5 64 14,4 47 81,3 4,88 21,5 651 0,16 7,5
