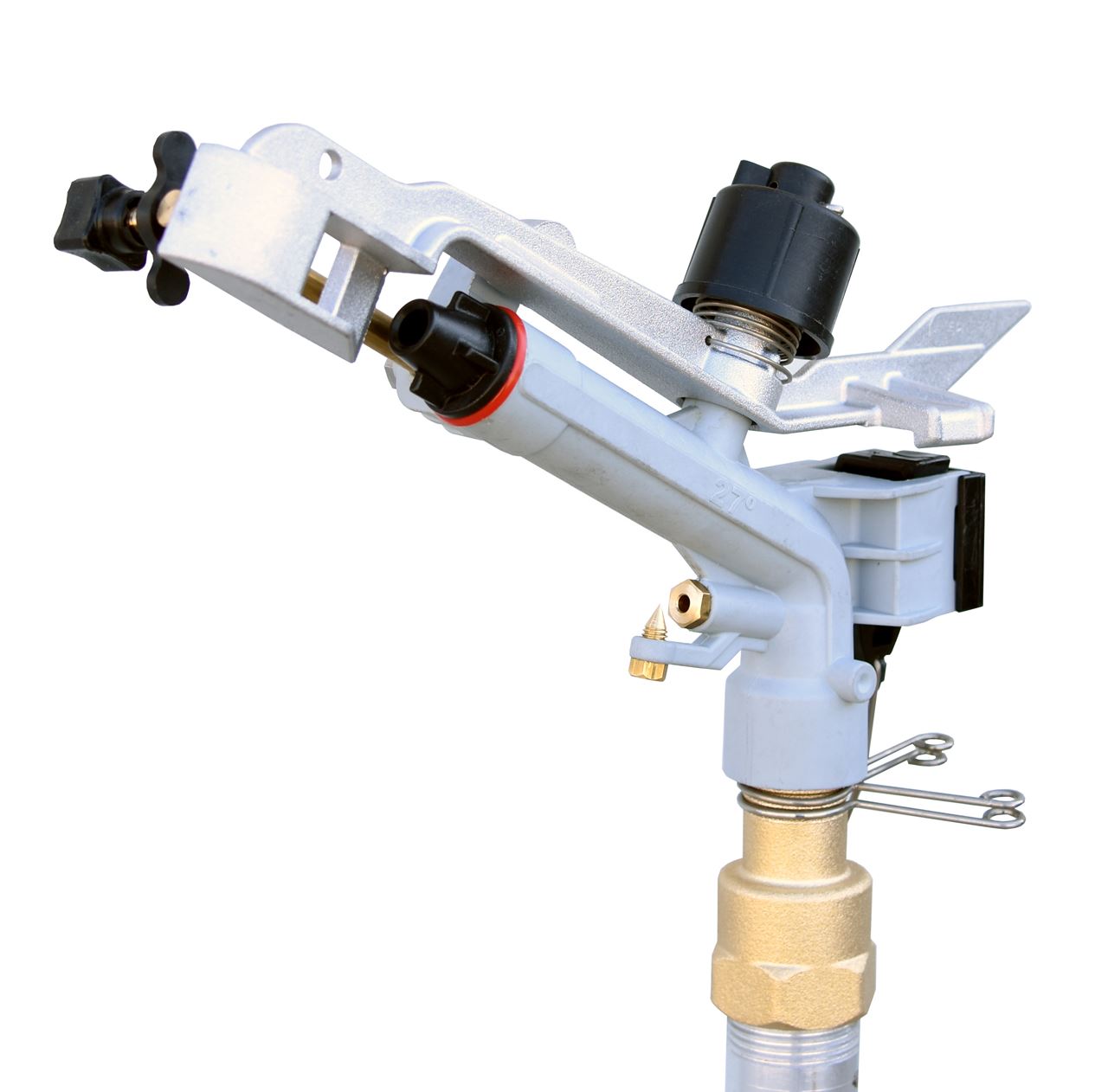

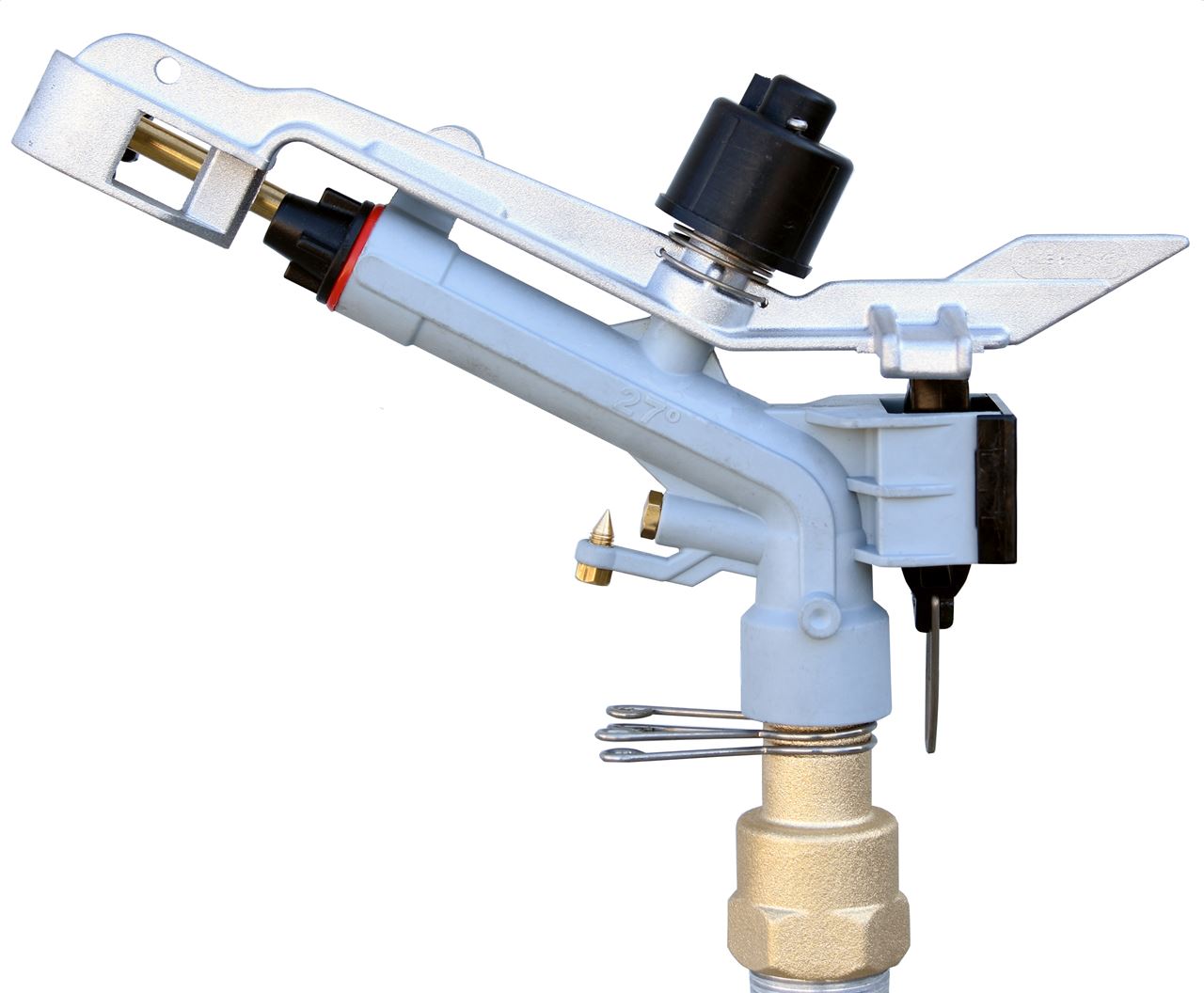

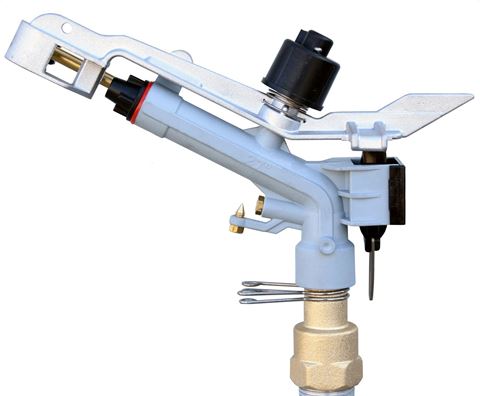

DuCaR Atom 22 Brass Housing

Water Input : 1"
Working Pressure : 2 - 4 atm
Water Requirement : 2.8 -8.6 m³/h
Knockers : 6 - 8 - 10 mm
Body Angle : 30°
Box Dimension : 0.250 cm X 0.200 cm
Weight : 0.55 kg
Shooting Range : 15 - 21 m
Circle : Full & Part Circle
SKU: Atom22
Delivery date: 3-5 business days
Manufacturer: DuCaR

Ducar ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 22 sprinkler:

  • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
  • Runs on pressure range between 21 to 56 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 42m diameter
  • Lays down 2.5 to 8.6 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
  • Great for any field crops and vegetables
  • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel



Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2

Ducar ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 22 sprinkler:

  • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
  • Runs on pressure range between 21 to 56 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 42m diameter
  • Lays down 2.5 to 8.6 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
  • Great for any field crops and vegetables
  • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel



Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2
