Picture of DuCaR Atom 42 Metal Picture of DuCaR Atom 42 Metal

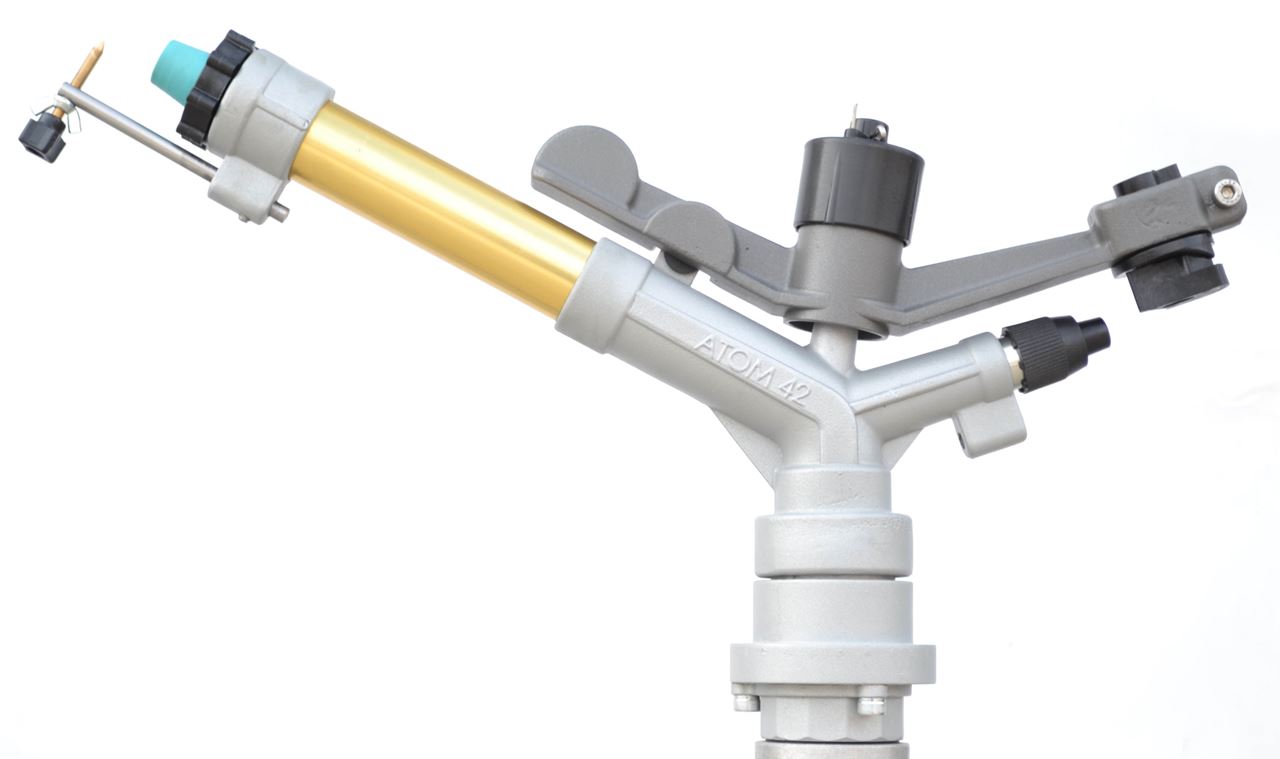

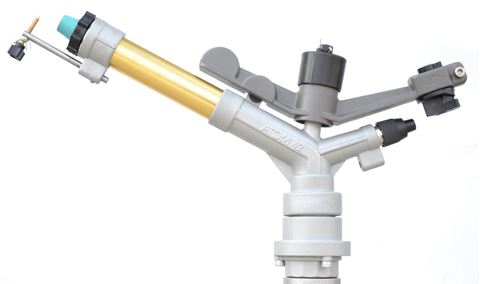

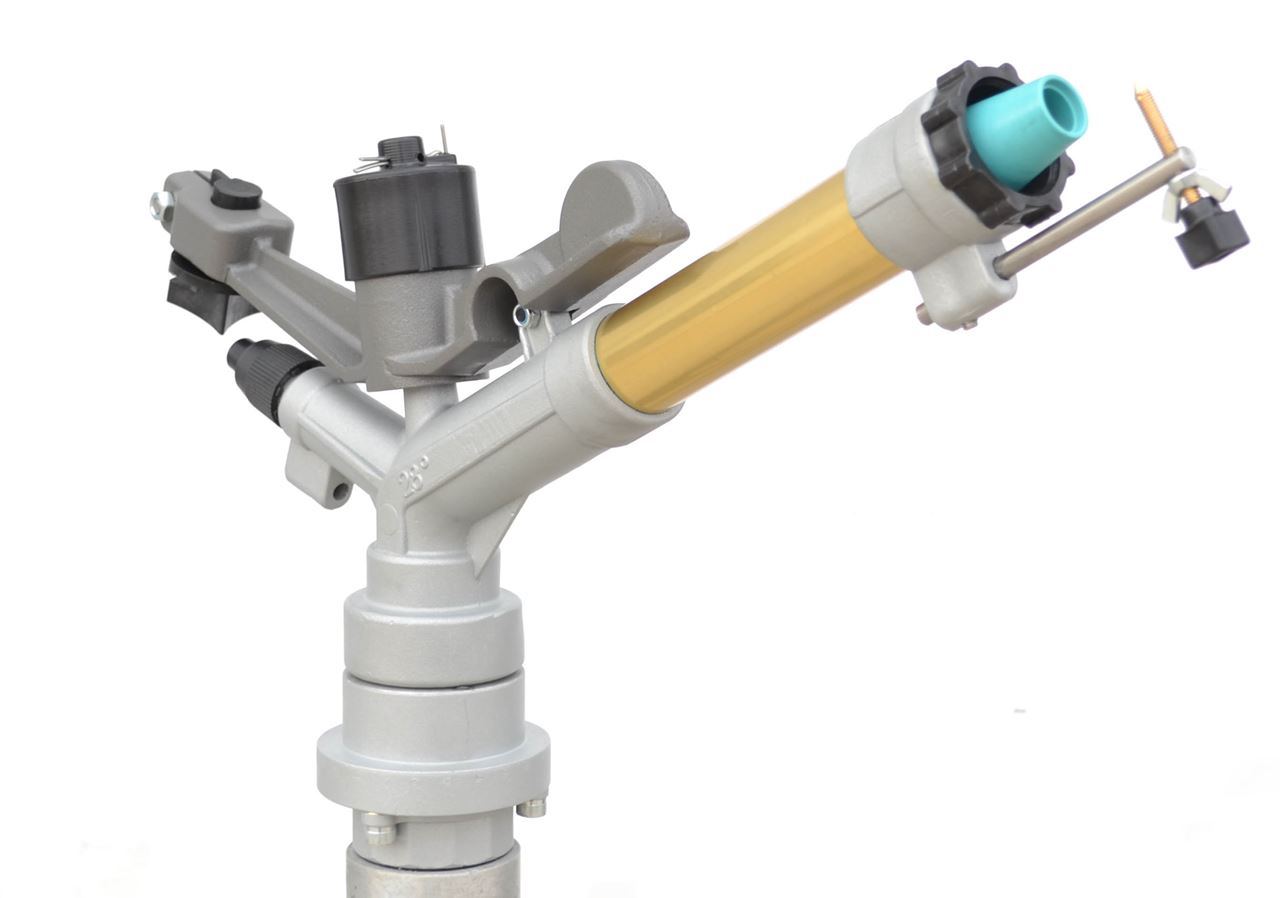

DuCaR Atom 42 Metal

Water Input : 2" Female BSP
Working Pressure : 29 - 85 psi
Water Requirement : 183 - 850 l/min
Shooting Range : 24 - 47 m
Knockers : 12, 14, 16, 18, 20, 22 mm
Body Angle : 28°
Box Dimension : 55x34x12 cm
Weight : 3.4 kg
Number of Sprayers : 2
Operation : Full Circle
SKU: Atom42
Manufacturer: DuCaR
Be the first to review this product

Ducar ATOM 42 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

  • Comes with 12, 14, 16, 18, 20, 22 mm nozzles
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 90m diameter!
  • Lays down 11 to 51 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 24 79 183,3 11 48 1384 0,34 7,9
12 .47 3 44 29 95 225 13,5 59 1962 0,48 6,9
12 .47 4 58 31 102 258,3 15,5 68 2461 0,61 6,3
14 .55 3 44 30 98 283,3 17 75 2461 0,61 6,9
14 .55 4 58 31 102 325 19,5 86 2826 0,70 6,9
14 .55 5 72 35 115 366,7 22 97 3215 0,79 6,8
16 .62 3 44 32 105 350 21 92 2826 0,70 7,4
16 .62 4 58 35 115 400 24 106 3419 0,84 7,0
16 .62 5 72 39 125 450 27 119 3846 0,95 7,0
18 .70 3 44 33 108 433,3 26 114 3017 0,75 8,6
18 .70 4 58 36 118 508,3 30,5 134 3630 0,90 8,4
18 .70 5 72 40 131 566,7 34 150 4298 1,06 7,9
20 .78 3 44 35 115 500 30 132 3630 0,90 8,3
20 .78 4 58 39 128 608,3 36,5 161 4298 1,06 8,5
20 .78 5 72 43 141 666,7 40 176 5024 1,24 8,0
22 .86 4 58 40 131 683,3 41 181 4298 1,06 9,5
22 .86 5 72 44 144 766,7 46 203 5024 1,24 9,2
22 .86 6 87 47 154 850 51 225 5805 1,43 8,8

Ducar ATOM 42 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

  • Comes with 12, 14, 16, 18, 20, 22 mm nozzles
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 90m diameter!
  • Lays down 11 to 51 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 .47 2 29 24 79 183,3 11 48 1384 0,34 7,9
12 .47 3 44 29 95 225 13,5 59 1962 0,48 6,9
12 .47 4 58 31 102 258,3 15,5 68 2461 0,61 6,3
14 .55 3 44 30 98 283,3 17 75 2461 0,61 6,9
14 .55 4 58 31 102 325 19,5 86 2826 0,70 6,9
14 .55 5 72 35 115 366,7 22 97 3215 0,79 6,8
16 .62 3 44 32 105 350 21 92 2826 0,70 7,4
16 .62 4 58 35 115 400 24 106 3419 0,84 7,0
16 .62 5 72 39 125 450 27 119 3846 0,95 7,0
18 .70 3 44 33 108 433,3 26 114 3017 0,75 8,6
18 .70 4 58 36 118 508,3 30,5 134 3630 0,90 8,4
18 .70 5 72 40 131 566,7 34 150 4298 1,06 7,9
20 .78 3 44 35 115 500 30 132 3630 0,90 8,3
20 .78 4 58 39 128 608,3 36,5 161 4298 1,06 8,5
20 .78 5 72 43 141 666,7 40 176 5024 1,24 8,0
22 .86 4 58 40 131 683,3 41 181 4298 1,06 9,5
22 .86 5 72 44 144 766,7 46 203 5024 1,24 9,2
22 .86 6 87 47 154 850 51 225 5805 1,43 8,8
