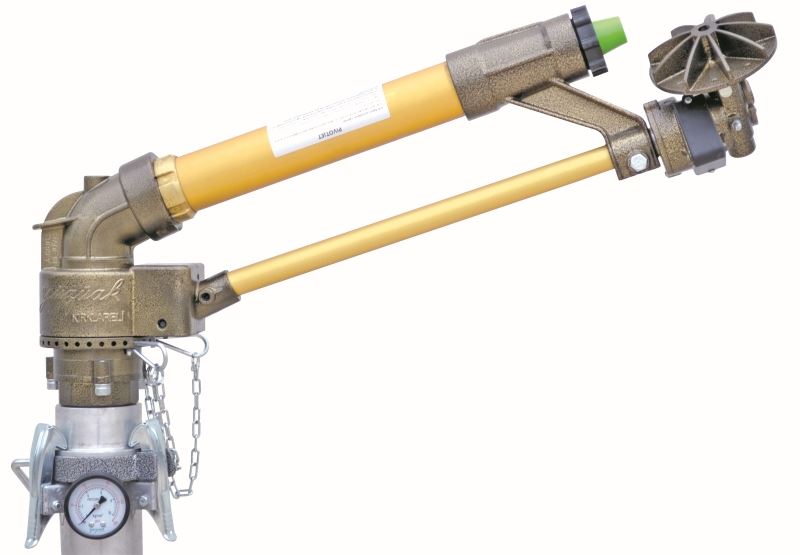

DuCaR Pivot JET

Water Input : 2"
Working Pressure : 2 - 6 atm
Water Requirement : 9.7 - 48 m³
Knockers : 12, 14, 16, 18, 20, 22, 24 mm
Body Angle : 18°
Box Dimension : 20x20x75 cm
Weight : 7.3 kg
Shooting Range : 20 - 41 m
  Free Quick Coupling : Yes
SKU: PVTJET
Manufacturer: DuCaR
Be the first to review this product

Wash Irrigation

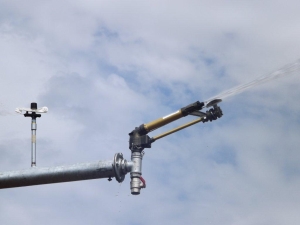

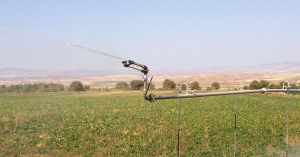

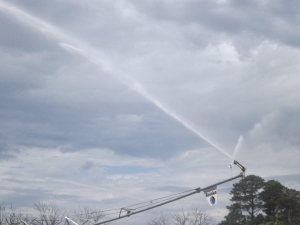

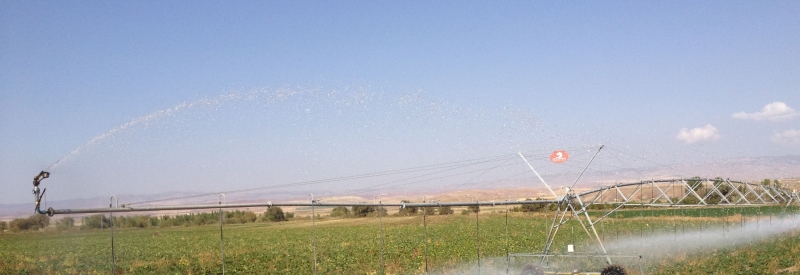

Gear Drive End-Gun for Center Pivot systems

Gear drive, medium pressure (2 – 6 atm) and high capacity sprinkler head.
Slow reverse rotation allows it to rotate full and semi circle in the same speed.
Excellent and unique water distribution
Body angle of 18° is quite appropriate for portable or stationary systems at windy areas and at locations which requires irrigation from low level.

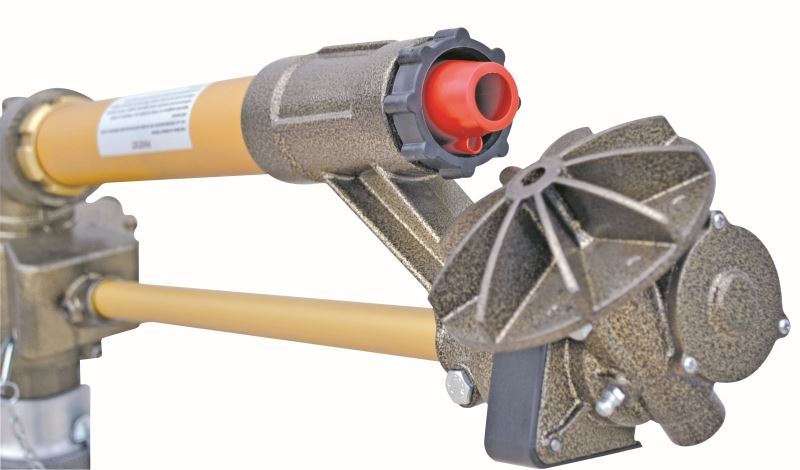

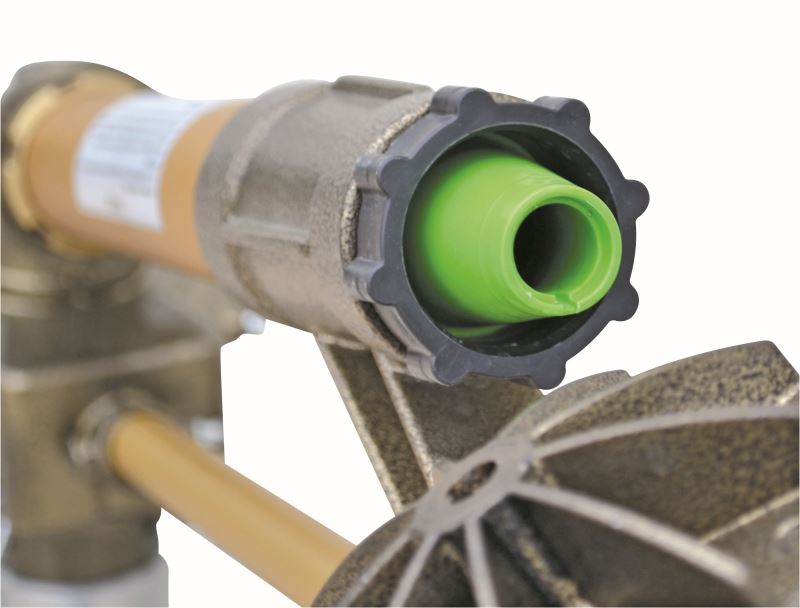

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.
No clog nozzle makes it appropriate for use as END-GUN at the portable irrigation machines and Center pivots.

Pivot jet comes with flange connection component and its aluminium nozzle set as standard.

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
12 0,47 2 30 19 61 133 8 35 1133 0,28 7,1
12 0,47 2,5 37 20 66 162 9,7 43 1256 0,31 7,7
12 0,47 3 44 22 71 177 10,6 47 1451 0,36 7,3
12 0,47 4 56 24 77 203 12,2 54 1734 0,43 7,0
14 0,55 2,5 37 22 71 220 13,2 58 1451 0,36 9,1
14 0,55 3 44 24 77 233 14 62 1734 0,43 8,1
14 0,55 4 56 26 85 270 16,2 71 2122 0,52 7,6
14 0,55 5 70 29 95 305 18,3 81 2640 0,65 6,9
16 0,62 2 29 24 77 242 14,5 64 1734 0,43 8,4
16 0,62 3 44 26 85 297 17,8 78 2122 0,52 8,4
16 0,62 4 56 28 90 342 20,5 90 2375 0,59 8,6
16 0,62 5 70 30 98 387 23,2 102 2826 0,70 8,2
18 0,70 3 44 29 95 375 22,5 99 2640 0,65 8,5
18 0,70 4 56 30 98 438 26,3 116 2826 0,70 9,3
18 0,70 5 70 33 108 470 28,2 124 3215 0,79 8,8
20 0,78 3 44 32 103 445 26,7 118 3155 0,78 8,5
20 0,78 4 56 33 108 537 32,2 142 3419 0,84 9,4
20 0,78 5 70 37 121 592 35,5 156 4298 1,06 8,3
22 0,86 3 44 32 103 557 33,4 147 3155 0,78 10,6
22 0,86 4 56 34 110 642 38,5 170 3523 0,87 10,9
22 0,86 5 70 36 118 717 43 189 4069 1,01 10,6
