DuCaR JET 70

Water Input : 3"
Working Pressure : 3 - 8 atm
Water Requirement : 43 - 146 m³
Knockers : 25, 28, 30, 32, 34, 36 mm
Body Angle : 23°
Box Dimension : 20x33x130 cm
Weight : 16 kg
Shooting Range : 41 - 71 m
  Free Quick Coupling : Yes
  Flanged Connected : Yes
SKU: JET70
Delivery date: 5 - 10 business days
Manufacturer: DuCaR

Agricultural Irrigation

Horse Farms and Pastureland Irrigation

Turf Irrigation and Synthetic Turf Cooling

Dust Control and Dust Suppression

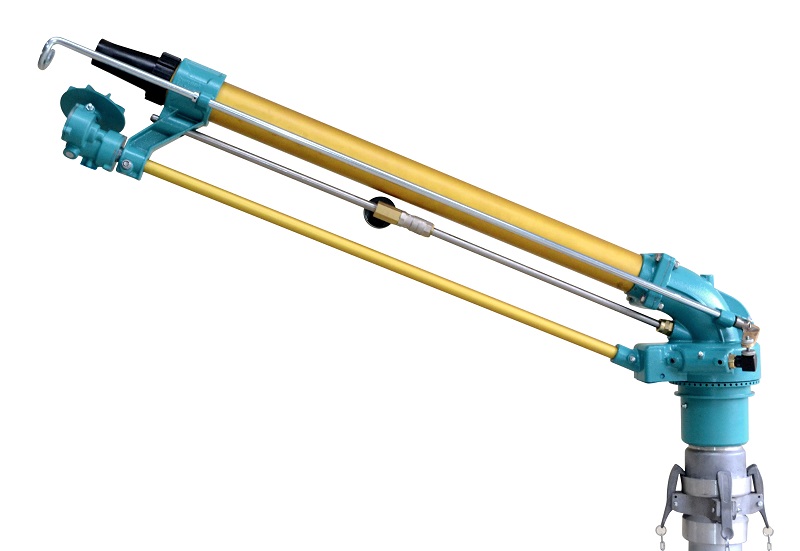

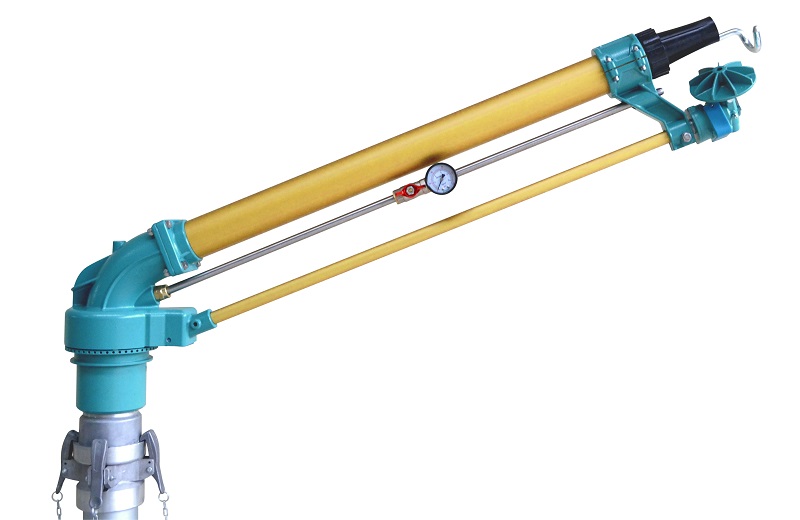

High capacity, high pressure (4 - 8 atm) and gear drive sprinkler head rotating full circle or, when required, in a range set by angle adjustment.

Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
It rotates full and part circle in the same speed.
It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc. as well as coffee, lemon and banana trees for humidification and washing purpose.
It is used for industrial applications such as dust control, fire protection, evaporation, wetting, and humidification.
Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure. This important function makes it suitable for all kinds of irrigation applications.
Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 23o makes this multifaceted model easy to use for any agricultural applications, turf irrigation, irrigation and cooling of the orchards, field crops and for industrial applications. We recommend this model for use at locations where the irrigation water is clean. Quick-connect system comes as standard together with the product.


Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
25 0,98 3 44 41 134 720 43,2 190 5278 1,30 8,2
25 0,98 4 56 44 144 805 48,3 213 6079 1,50 7,9
25 0,98 5 70 48 157 916,7 55 242 7235 1,79 7,6
28 1,10 4 56 50 164 1050 63 277 7850 1,94 8,0
28 1,10 5 70 52 171 1200 72 317 8490 2,10 8,5
28 1,10 6 85 56 184 1300 78 343 9847 2,43 7,9
30 1,18 4 56 51 167 1220 73,2 322 8167 2,02 9,0
30 1,18 5 70 56 184 1383 83 365 9847 2,43 8,4
30 1,18 6 85 57 187 1488 89,3 393 10200 2,52 8,8
32 1,25 4 56 52 171 1383 83 365 8590 2,10 9,8
32 1,25 5 70 56 184 1550 93 409 9847 2,43 9,4
32 1,25 6 85 60 197 1733 104 458 11304 2,79 9,2
32 1,25 7 100 64 210 1850 111 489 12861 3,18 8,6
34 1,33 5 70 58 190 1750 105 462 10562 2,61 9,9
34 1,33 6 85 62 203 1950 117 515 12070 2,98 9,7
34 1,33 7 100 66 216 2033 122 537 13677 3,38 8,9
36 1,41 6 85 65 213 2117 127 559 13266 3,28 9,6
36 1,41 7 100 68 223 2253 135 595 14520 3,59 9,3
36 1,41 8 114 71 233 2435 146 643 15828 3,91 9,2

High capacity, high pressure (4 - 8 atm) and gear drive sprinkler head rotating full circle or, when required, in a range set by angle adjustment.

Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
It rotates full and part circle in the same speed.
It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc. as well as coffee, lemon and banana trees for humidification and washing purpose.
It is used for industrial applications such as dust control, fire protection, evaporation, wetting, and humidification.
Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure. This important function makes it suitable for all kinds of irrigation applications.
Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 23o makes this multifaceted model easy to use for any agricultural applications, turf irrigation, irrigation and cooling of the orchards, field crops and for industrial applications. We recommend this model for use at locations where the irrigation water is clean. Quick-connect system comes as standard together with the product.


Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
25 0,98 3 44 41 134 720 43,2 190 5278 1,30 8,2
25 0,98 4 56 44 144 805 48,3 213 6079 1,50 7,9
25 0,98 5 70 48 157 916,7 55 242 7235 1,79 7,6
28 1,10 4 56 50 164 1050 63 277 7850 1,94 8,0
28 1,10 5 70 52 171 1200 72 317 8490 2,10 8,5
28 1,10 6 85 56 184 1300 78 343 9847 2,43 7,9
30 1,18 4 56 51 167 1220 73,2 322 8167 2,02 9,0
30 1,18 5 70 56 184 1383 83 365 9847 2,43 8,4
30 1,18 6 85 57 187 1488 89,3 393 10200 2,52 8,8
32 1,25 4 56 52 171 1383 83 365 8590 2,10 9,8
32 1,25 5 70 56 184 1550 93 409 9847 2,43 9,4
32 1,25 6 85 60 197 1733 104 458 11304 2,79 9,2
32 1,25 7 100 64 210 1850 111 489 12861 3,18 8,6
34 1,33 5 70 58 190 1750 105 462 10562 2,61 9,9
34 1,33 6 85 62 203 1950 117 515 12070 2,98 9,7
34 1,33 7 100 66 216 2033 122 537 13677 3,38 8,9
36 1,41 6 85 65 213 2117 127 559 13266 3,28 9,6
36 1,41 7 100 68 223 2253 135 595 14520 3,59 9,3
36 1,41 8 114 71 233 2435 146 643 15828 3,91 9,2
Products specifications
Body Angle
Water Input
Working Pressure
Water Requirement
Knockers
Box Dimension
Weight
Minimum Shooting Range 41 m
Maximum Shooting Range 71 m
Free Quick Coupling
Flanged Connected
